uHUB P5+ 5-in-1 USB-C Hub with 100W Power Delivery

Regular price
$0.00 USD
Sale price
$0.00 USD
Regular price
Unit price
per
Where to Buy

Model Number: H1107B

Product Overview:

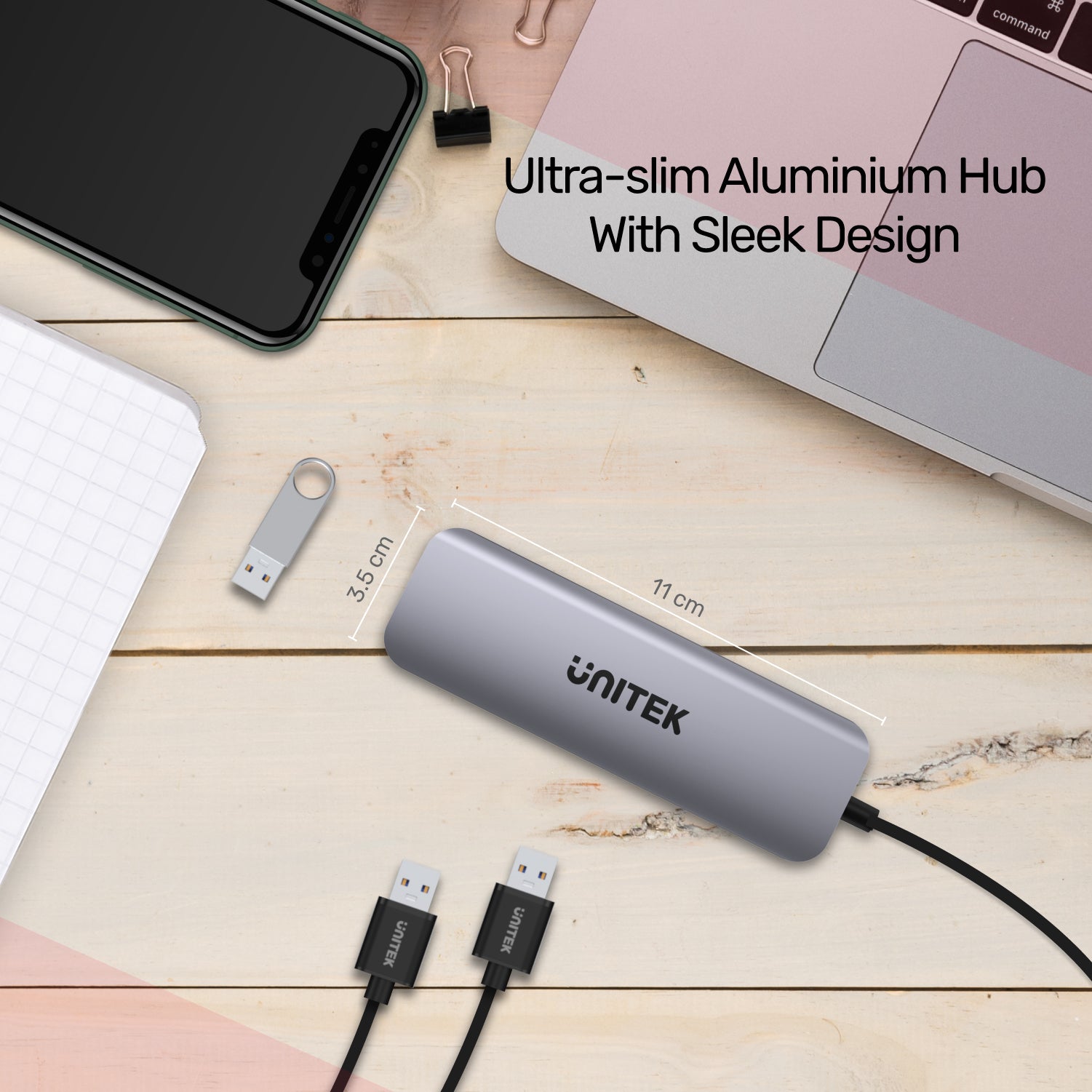

  • Ultra-slim aluminium housing
  • USB-C Power Delivery 100W charging
  • USB3.1 Gen1 5Gbps SuperSpeed
  • 4 ports for USB expansion
uHUB P5+ is a USB-C 5/6 ports hub series composed of 6 models with 3.5mm width only ultra-slim aluminium housing. H1107B offers you the 4 USB-ports for expansion plus the forceful Power Delivery 100W charging via the USB-C socket.

Certification:

Product Features:
  • 4 USB-A ports for easy expansion. With USB3.1 Gen1 specification, the data transfer rate up to 5Gbps. Backward compatible with USB2.0/1.1.
  • With the USB-C Power Delivery (USB PD) port, supporting maximum 100W/20V5A charging to your upstream computer including MacBook Pro 2019.
  • USB PD power actual output depends on your power adapter.
  • USB-C connector allows you to connect with USB-C equipped computer, tablet and smartphone for data sync (the USB-C port on your device requires data transfer function).
  • Fast charging with BC1.2 technology, provides up to 5V1.5A of power per each USB-A port.
  • Plug and play, no driver required.
Hardware&Dimension:
  • Color: Space Grey
  • Upstream: USB-C Male
  • Downstream: USB-A x4, USB-C (for PD 100W charging)
  • Dimension: 110mm x 34.8mm x 12.3mm
  • Cable Length: 20.5cm
  • OD: 4.2mm
Package Contents:
1 x uHUB P5+ (4-Port Expansion With USB Power Delivery 100W Charging

F.A.Q

How do I know that my USB devices are connected via the USB hub in Windows?

Go through the following:
1. Press the Windows Key plus R, type "devmgmt.msc", and press Enter.
2. In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB controller card would be under Universal Serial Bus controllers.
3. Your USB device is listed according to the name of the chipset or the dedicated name.

How do I know that my USB devices are connected via the USB hub in macOS?

Go through the following:
1. Click the Apple icon.
2. Click About This Mac.
3. Click More Info or System Report.
4. Under the appropriate heading, please check that your USB device is listed (according to the name of the chipset or the dedicated name) and that there isn't an error. For example, a network card would be under Ethernet Cards.
5. You may have to refresh the System Information page after you plug in your device. To do so, press Command + R with the System Information page open.

Why the file transmission from an attached storage device cannot complete via the USB hub?

If you disconnect a USB-C power input from the multiport USB hub during the transmission of the files to or from an attached storage device, it will stop the transmission and may cause file corruption. It is also possible that there will be a loss of function if the power input is removed from the USB hub while it is in operation.
It is important to always follow the disconnection steps listed following:
1. Complete all data transfers over USB to and from the attached storage device.
2. Disconnect the USB hub from the host computer.
3. Disconnect your power input from the USB hub.
4. Eject your attached storage device.

How can I charge my laptop when connecting with the USB hub?

If your USB hub equips the USB Power Delivery (PD) port, you can use it to charge your laptop computer by connecting to a PD power adapter.
For more information on what the requirements are and about how much power this laptop docking station provides, refer to the product specifications.
