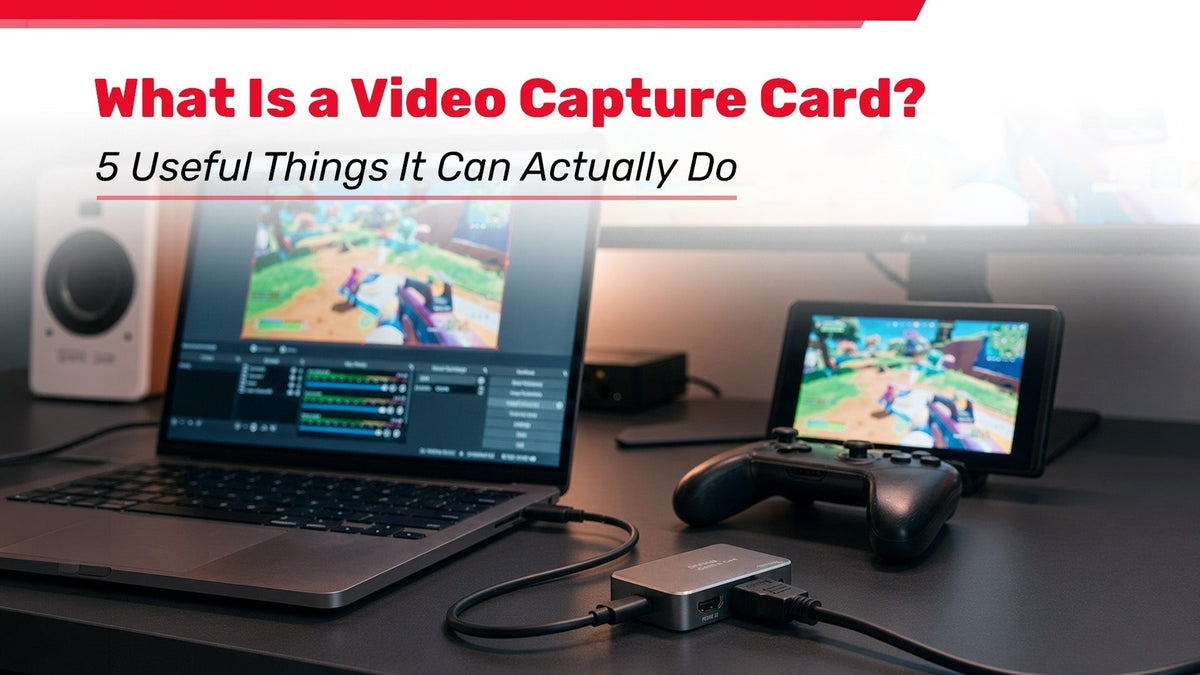

What Is a Video Capture Card? 5 Useful Things It Can Actually Do

An HDMI capture card is a compact converter that takes HDMI output from a game console, camera, camcorder, or set-top box and presents it to a computer as a standard USB video and audio source.

Without capture, those signals typically remain limited to a display or projector and cannot be ingested by conferencing, streaming, or editing applications such as Zoom, OBS Studio, or NLE software.

External units are generally bus-powered and compliant with UVC/UAC, so the host recognizes them as a camera and audio device with no drivers and no external PSU. Models with HDMI loop-out (pass-through) deliver a simultaneous feed to both the computer and a local monitor, keeping on-screen monitoring latency negligible.

That capture path is the foundation for live streaming, webcam substitution, and file-based recording. Beyond broadcast use, the same device supports DSLR-as-webcam conferencing, console play on a tablet, and archival digitization. Five practical, underused applications follow.

Live Game Streaming & Multi-Camera Live

Console-to-platform streaming - Switch, PlayStation 5, or Xbox to YouTube, Twitch, and similar services - is the primary purchase driver for HDMI capture cards. Consoles cannot composite a broadcast layer (camera overlay, captions, alerts, or transitions). The HDMI output must be ingested by a computer via a capture card, then assembled in production software.

OBS Studio is the dominant application in this workflow. It is a free, open-source encoder for live streaming and local recording, combining capture-card input, webcams, microphones, and desktop sources on a single program output. In OBS, the card is added as a Video Capture Device; selecting the correct device, resolution, and audio source places the console feed in preview.

Production layouts typically use gameplay as the base scene, with webcam, chat, or alert overlays in secondary regions. The same architecture applies to instructional streams and livestream commerce: the capture card acquires the external source; OBS handles scene composition and distribution.

HDMI loop-out (pass-through) preserves near-zero-latency monitoring for the player while viewers receive the composited stream. OBS compatibility and loop-out stability are therefore the decisive specification criteria.

Turning a Camera or DV Camcorder into a High-Definition Webcam

Built-in laptop cameras degrade quickly in low light and lack subject tracking. Routing a dedicated camera or camcorder through an HDMI capture card allows that source to be selected directly in Zoom, Microsoft Teams, or Google Meet. Cards that comply with UVC are enumerated by the operating system as a standard camera device and are typically driver-free.

Cameras and camcorders are both valid sources, but their HDMI audio behavior differs. Camcorders are designed for extended recording and generally embed audio in the HDMI output. Many interchangeable-lens cameras guarantee video only; embedded audio is not assured. Audio must then be introduced via the capture card’s 3.5 mm microphone or line-in input, or captured independently on the host. Specifying a card with a 3.5 mm input avoids a split-audio workflow.

Essential Setup Tips:

• Power and Thermal Management: Extended Live View or continuous HDMI output can cause overheating or trigger auto-sleep modes. Always use dummy batteries or external power, and disable the camera's sleep timer beforehand.
• Enable Clean HDMI: Always verify that your camera supports Clean HDMI and that the setting is turned on. Without it, distracting on-screen overlays (focus squares, battery percentages, and exposure data) will be broadcast straight into your meeting feed.

Using a Laptop or iPad as an External Monitor

For location work, production, or travel, a dedicated external display is often unnecessary. An HDMI capture card can present a camera, console, or compact desktop feed on a laptop or iPad already on hand.

Connect the source HDMI output to the capture card input, then attach the card to the host over USB-C or USB-A. On a laptop, display the UVC source full screen in OBS or a media player. On iPad (iPadOS 17 or later), use a UVC-compatible application such as Orion or Capture Pro for a live preview.

Typical deployments include portable Nintendo Switch play—HDMI from the dock or adapter into the card, then into the laptop or iPad—and headless setup of a Mac mini, where the laptop substitutes for a dedicated monitor during configuration.

Cross-Room Real-Time Monitoring & Workshop Live Demo

In large seminars, expert forums, hands-on workshops, and product demonstrations, tabletop work—illustration, micro-assembly, lab procedure, or product close-up—is often unreadable from the floor or rear seating. An HDMI capture workflow can deliver that feed to the primary house display and to distributed monitors across the venue in real time.

A camera or overhead unit at the presenter table is extended to the monitoring position by long HDMI cable or wireless HDMI transmitter, then ingested by a capture card into a laptop. Full-screen output from OBS can be routed to the stage display, side-panel monitors, or a remote breakout session.

Digital Archiving for Legacy A/V Equipment

Legacy game consoles, VHS VCRs, and MiniDV camcorders can be ingested to a laptop as MP4 files whenever HDMI output is available, either natively or through a converter. The capture card provides the USB ingest path.

File-based footage can then be edited and captioned in standard NLE software. In this workflow the card functions solely as an AV bridge—converting a legacy signal into an archival file so the content is no longer bound to deteriorating media.

A typical consumer case is a two-decade-old VHS wedding recording: VCR to AV-to-HDMI converter, converter to capture card, card to laptop. Recording in OBS writes an MP4 and reduces dependence on tape that can mold, stretch, or snap.

Video Capture Card Buying Guide

Marketing copy routinely leads with 4K, low latency, and plug-and-play. Source format and host interface should be specified first. A 4K-capable card on USB 2.0 will still degrade resolution and stability.

• Capture resolution and frame rate. Specify the ingested format, not the peak figure on the carton. 1080p is sufficient for conferencing and routine recording; 4K is justified for archival masters or high-refresh workflows. A 1080p source will not upscale in quality on a 4K card. Support for 4K input is not equivalent to 4K capture; true 4K capture devices typically start around US$120.
• HDMI loop-out (pass-through). Simultaneous ingest and local display. Required where the operator needs near-zero-latency monitoring; optional for file-only capture or conferencing.
• USB throughput. Frame drops, bitrate collapse, and A/V drift are frequently interface-limited. 4K or high-frame-rate capture requires USB 3.0 / USB-C at 5 Gbps on a native host port. USB-C form factor does not imply 5 Gbps; charge-only ports will not sustain the stream.
• UVC / UAC compliance. Determines whether the OS enumerates the device as a standard camera and audio endpoint. Prefer class-compliant hardware over vendor-locked applications for OBS, Zoom, and Teams.
• Discrete analog audio input. If HDMI video arrives without embedded audio, a 3.5 mm microphone or line-in input avoids a second audio interface. Interchangeable-lens cameras commonly omit HDMI audio.

Video Capture Card Price and Tiers

Video Capture Card FAQ

1. Why are my audio and video out of sync?
   Audio and video can drift apart due to video encoding delays, sample rate mismatches (like 44.1kHz versus 48kHz), or dropped frames from a slow connection. To fix this, plug straight into a USB 3.0 port, unify your audio sample rates, and use the sync offset slider in OBS to dial it back in.
2. Does the USB port actually matter?
   Yes, especially for higher resolutions. USB 2.0 can barely handle 1080p60, while 4K or high-refresh feeds demand a direct USB 3.0 (5Gbps) connection. Always plug straight into your computer and skip cheap hubs or long extension cables that throttle speeds.
3. Why am I getting a black screen, "no signal," or a device not recognized?
   First, check your physical setup: the source goes to HDMI IN, your monitor goes to HDMI OUT, and the USB goes to the PC. If everything is plugged in correctly, the issue is usually console HDCP copy protection, another app like Zoom hogging the device, or the card being choked by a slow USB port.
